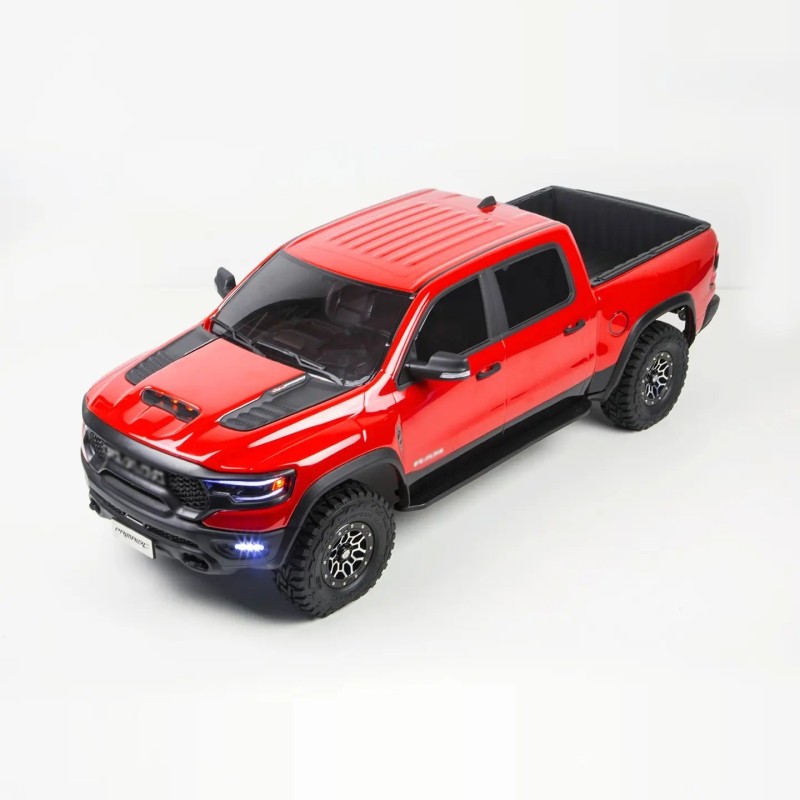

Traction Hobby Ram 1500 1/8 RC Car
$1,099.99
Tax excluded
NOTE: Buy now and get a free set of 2.2" KO2 tires!
Overview: The TractionHobby RAM 1500 is a 1:8 scale pickup co-developed by TractionHobby and PRIMAL RC, offered in brushless and brushed versions. It features independent front suspension, solid rear axle, 2-speed transmission, and differential locks. With full metal gears and a steel chassis, it supports 2–4S LiPo batteries and delivers both realistic appearance and strong off-road performance.
Type:
- A-1: Brushless Red;
- A-2: Brushless Silver;
- A-3: Brushless Blue;
- A-4: Brushless Clear;
- B-1: Brushed Red;
- B-2: Brushed Silver;
- B-3: Brushed Blue;
- B-4: Brushed Clear;
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Traction Hobby Ram 1500 1/8 RC Car
I. Basic Information
- Brand/Model: TractionHobby / RAM 1500
- Version: Brushless Version (FOC) | Brushed Version
- Remarks: Co-branded Model by TractionHobby & PRIMAL RC
- Scale: 1:8
- Type: RAM 1500 Pickup Truck with Independent Front Suspension and Solid Rear Axle
- Battery: Supports 2-4S Lithium Batteries
- Battery Size: Maximum Supported Size 150mmx46mmx40mm
- Length x Width x Height: 743×323×262mm (840×360×360mm)
- Body Structure: RAM 1500 Body Structure– Pickup Truck with Independent Front Suspension and Solid Rear Axle
II. Vehicle Body
- Wheelbase (mm): 421mm
- Track Width: 222mm
- Minimum Ground Clearance: 39mm
- Approach Angle: 32°
- Breakover Angle: 32°
- Departure Angle: 26°
- Gross Vehicle Weight (KG): 10.6KG
- Supported Motor: Motor Diameter ≤ 46mm, Length ≤ 75mm
- Motor Pinion: Factory Standard 14T; Adjustable Backlash, Supports 12-20T
III. Gearbox
- Gearbox Type: Integrated Gearbox; Integrates 2-speed, Reverse Transmission, Front-wheel Drive, Rear-wheel Drive, Four-wheel Drive, Four-output, etc.
- Number of Gears: 2 Gears (2-speed); Metal Gear High-voltage Fully Splash-proof Servo
- Differential Lock: Servo Pull-type; Metal Gear High-voltage Fully Splash-proof Servo
IV. Steering System
- Steering System: Multi-link Steering Mechanism; Full Metal CNC Machining
- Servo Arm: Metal Steering (25T); Full Metal CNC Machining
- Steering Method: Servo Pull-type; TH1333 / 6V / 33kg Digital Coreless Servo | TH1435HV High-voltage Digital Servo
V. Body Structure

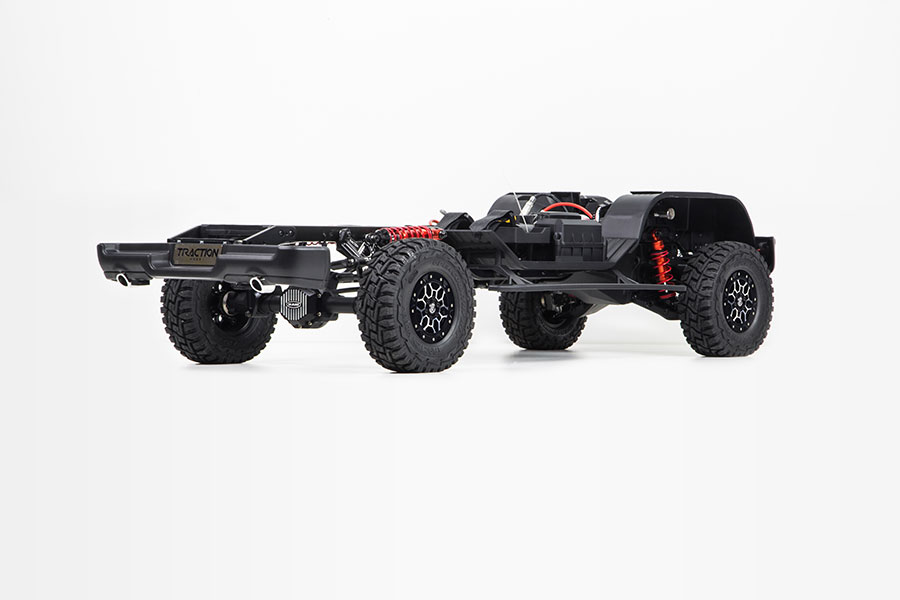

- Chassis Frame: 1.5mm Steel C-type Chassis Frame – designed to match the RAM 1500 Pickup Truck scale details
- Drive Mode: Part-time Four-wheel Drive; Front-wheel Drive, Rear-wheel Drive, Four-wheel Drive

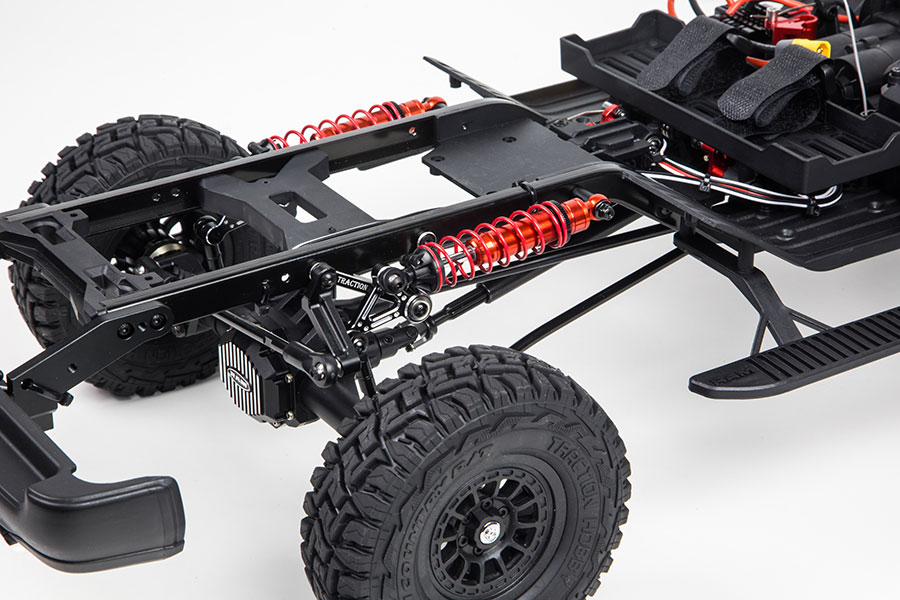

- Suspension Type: Independent Front Suspension and Solid Rear Axle Suspension; Steel Tie Rods
- Transmission System: Full Metal Gears, 7mm Drive Shaft (Full Metal)
- Front Shock Absorber Type: 81mm Shock Absorber; Full Metal Coilover Shock Absorber
- Rear Shock Absorber Type: 93mm Shock Absorber; Full Metal Horizontal Coilover Shock Absorber
- Drive Shaft: Full Metal Drive Shaft

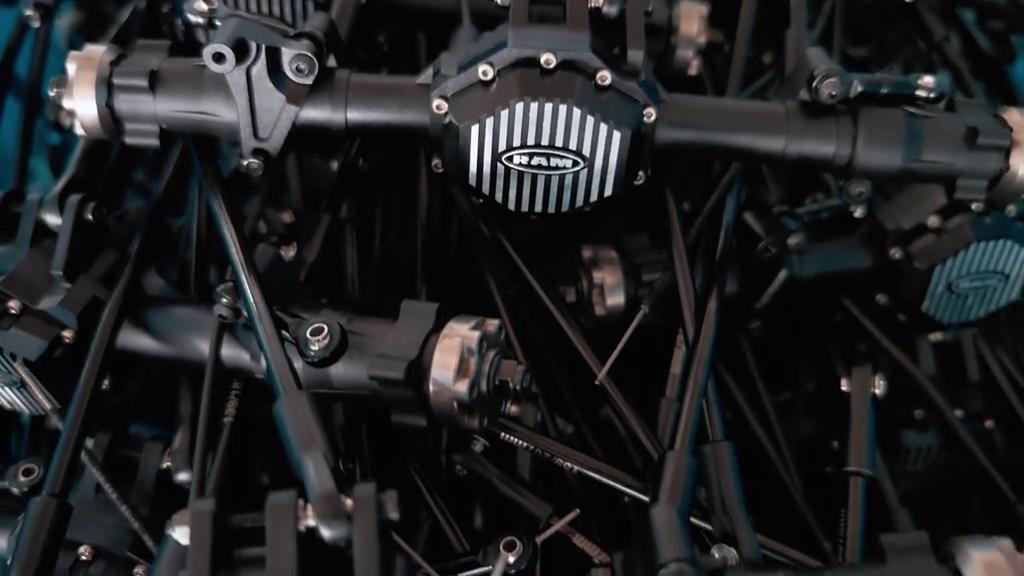

- Axle: Independent Front Axle and Solid Rear Axle (Supports Differential Lock); Nylon Axle + CNC Axle Housing Cover

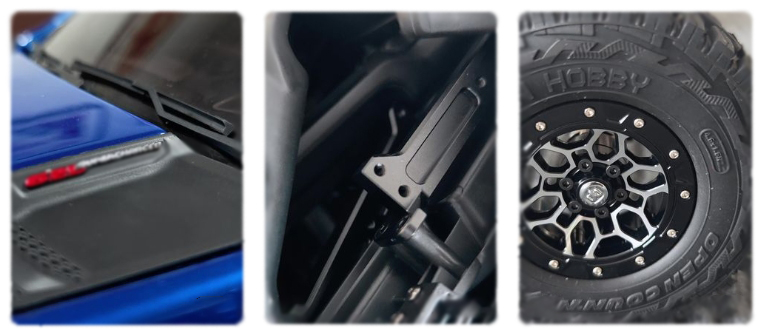

- Body Simulation: Foldable Rearview Mirrors, Simulated Light Group, Windshield Wipers, Door Handles, Cargo Bed, Simulated Interior – all carefully modeled after the RAM 1500 design

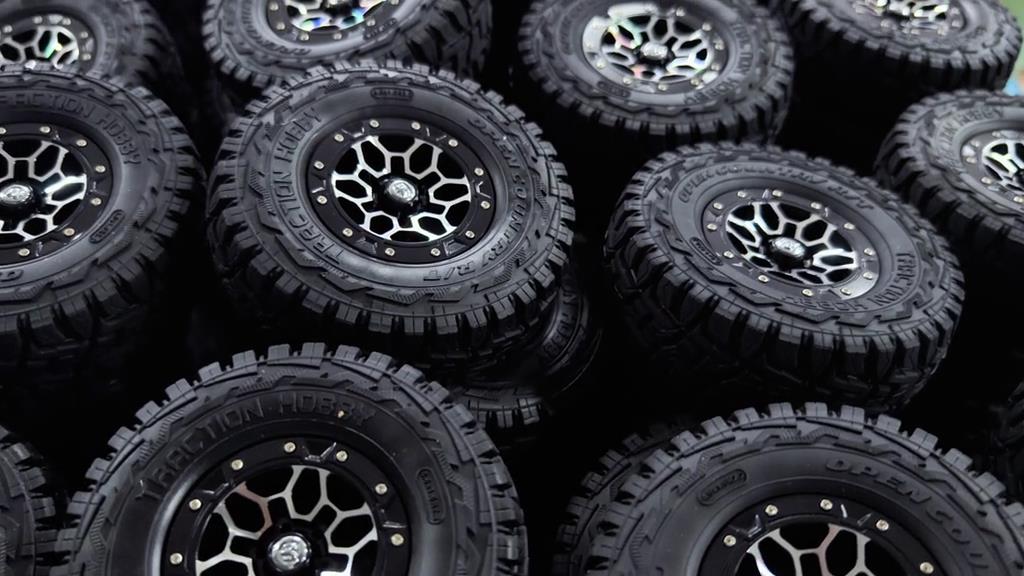

- Wheel Specification: 2.2-inch; CNC Original TRX (T-Rex) Wheel
- Tire: Off-road Tire, Outer Diameter 115, Width 42
VI. Electronic Configuration
- Remote Controller: FS-G7P + 10-channel Receiver with Gyro | DUMBORC DDF-350 10-channel LCD Display Remote Controller
- ESC (Electronic Speed Controller): Hobbywing Fusion 8IGHT RTR (1800KV) | Hobbywing 880 (BEC 7.4V) Custom High-voltage Splash-proof ESC

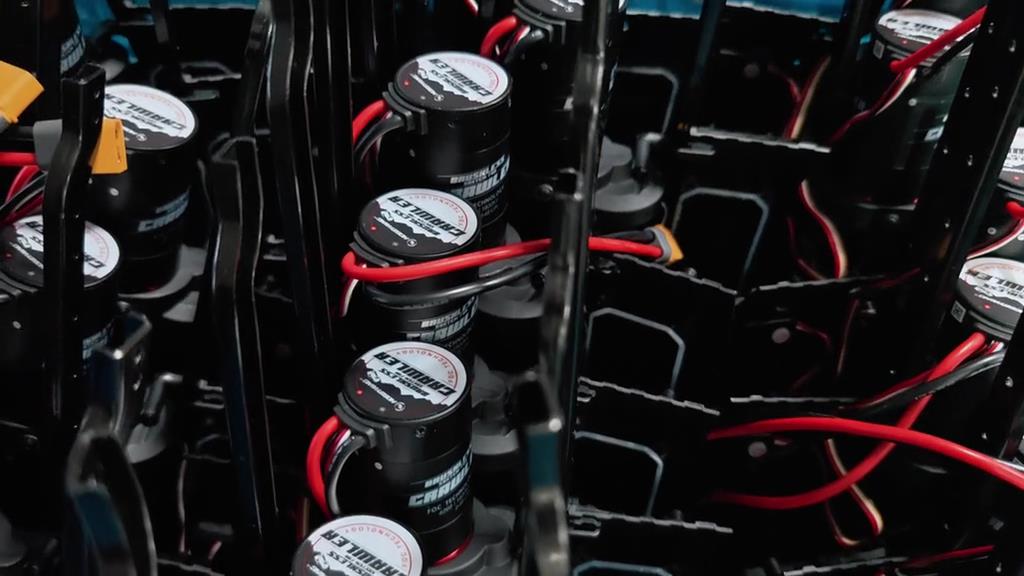

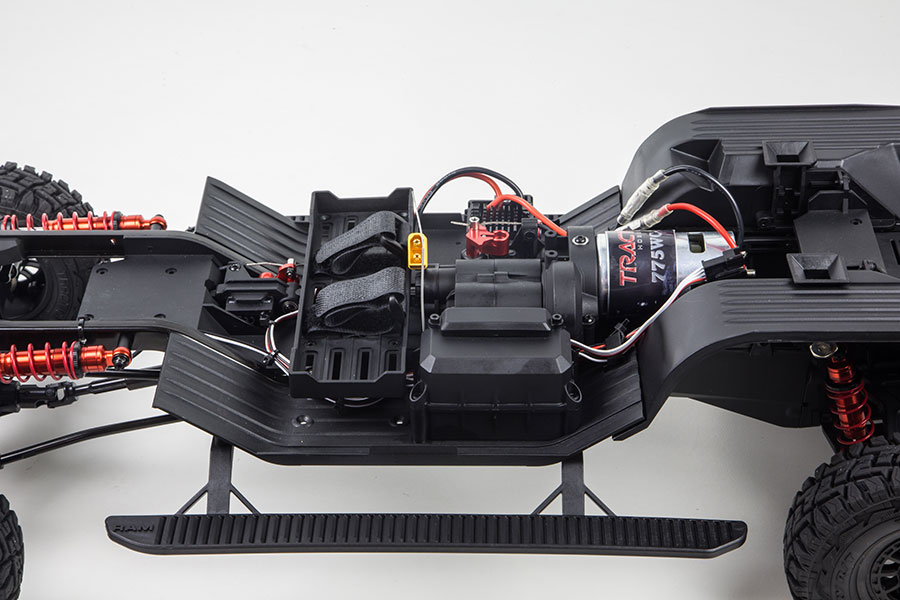

- Motor: Integrated ESC Motor | Brushed 775 Motor
- Steering Servo: TH1333 / 6V / 33kg Digital Coreless Servo | TH1435HV High-voltage Digital Servo
- Functional Servo: TH1036HV High-voltage Digital Servo
- Light Group: Simulated Light Group; SMD Light Group + LED Light Group (Combination)
VII. Package included
- 1x RAM 1500 RC Car
- 1x Remote Controll
- 1x User Manual
Note: The body battery and charger must be purchased separately.

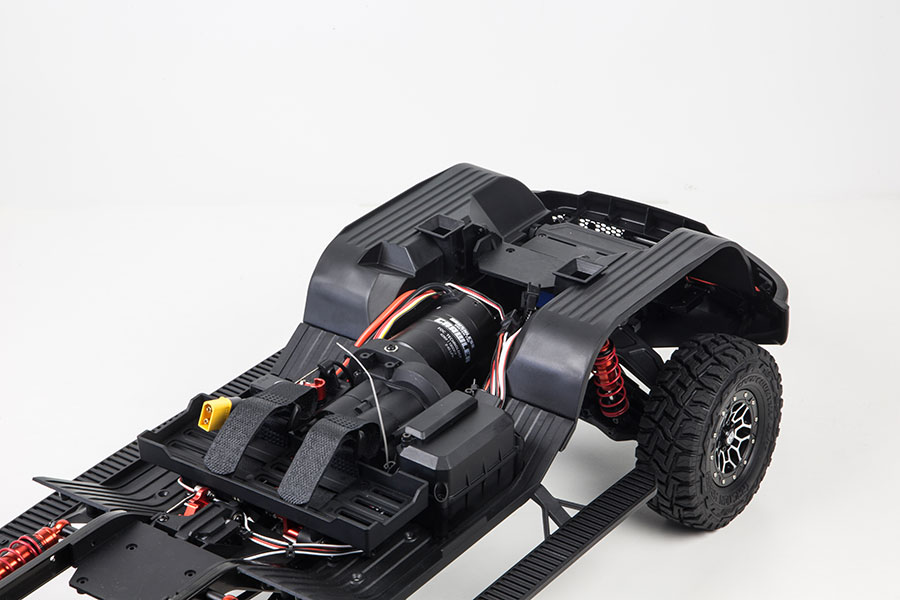

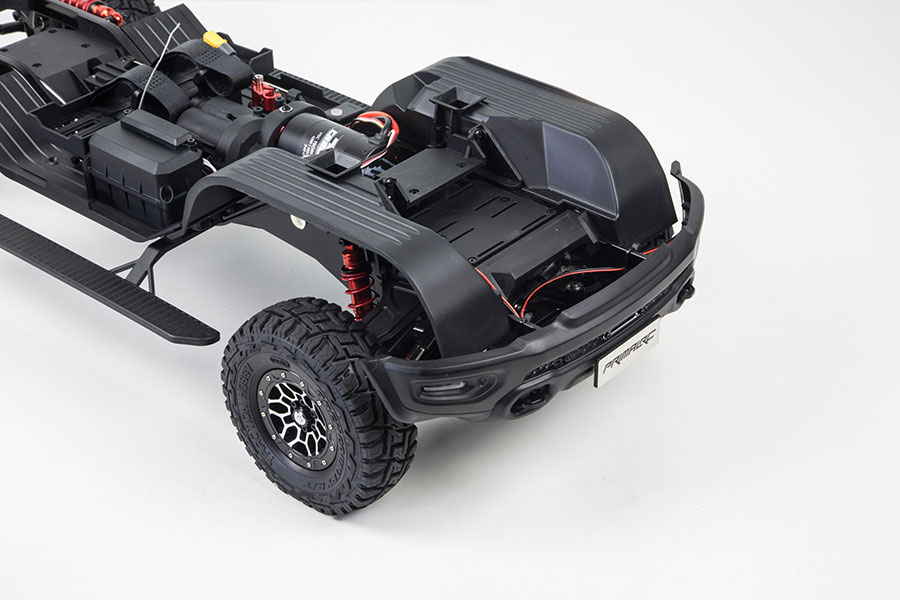

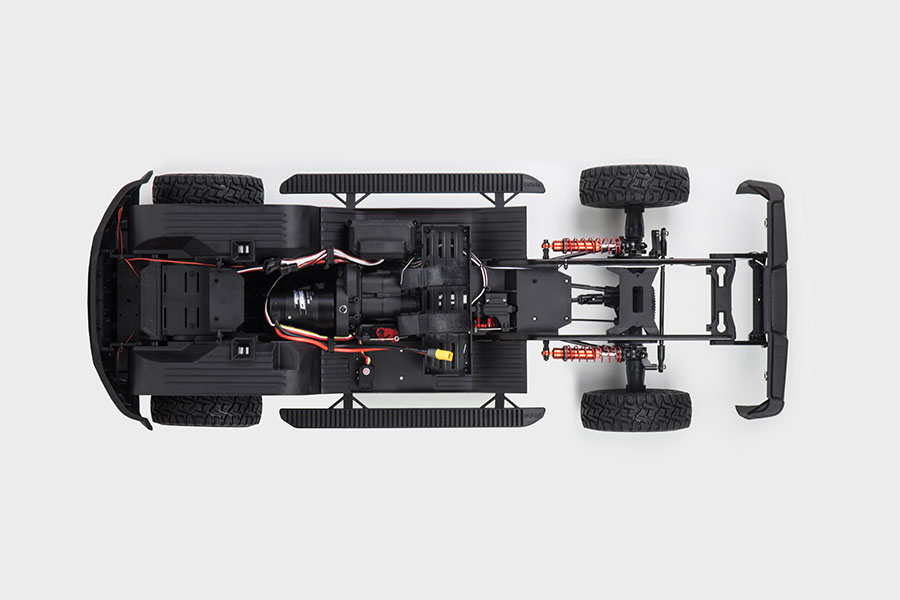

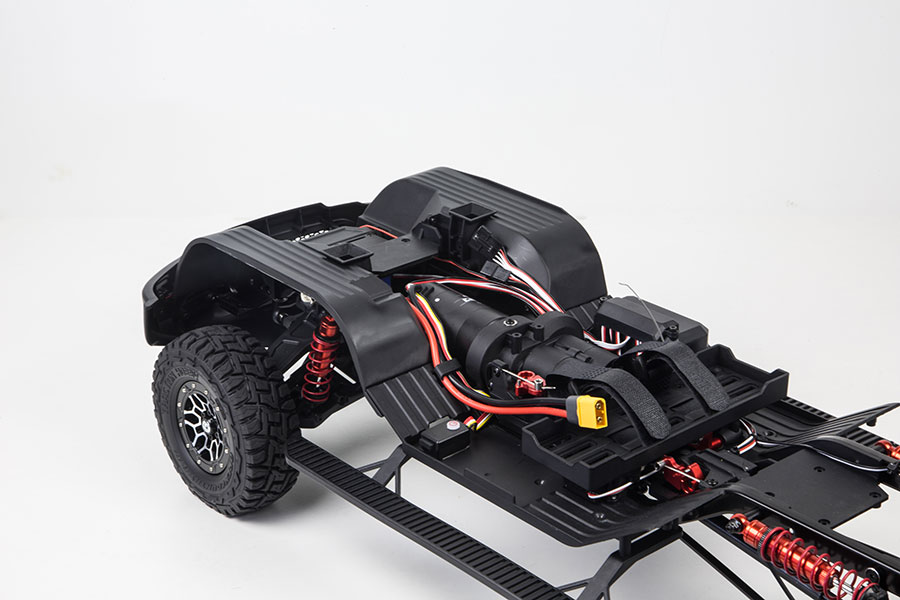

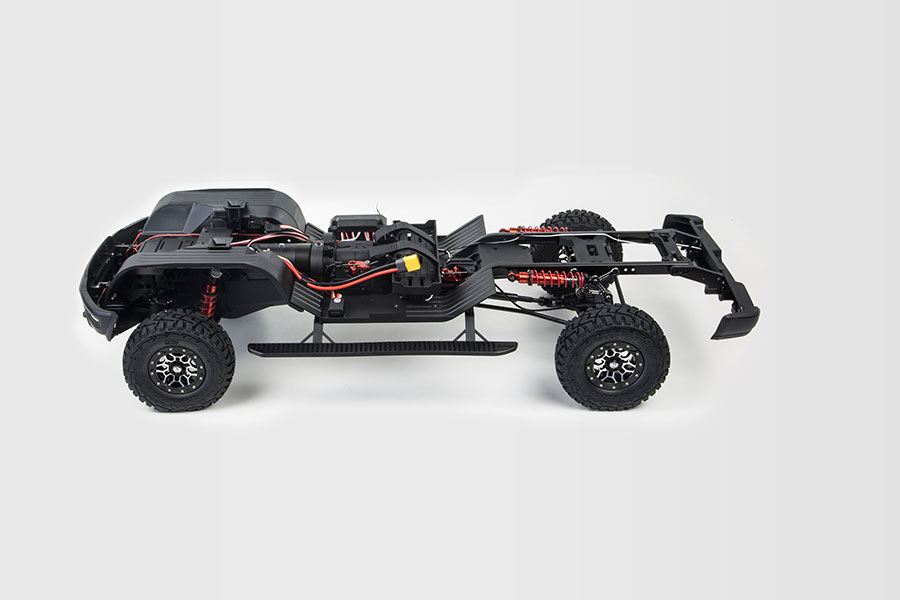

Brushless Version (FOC)

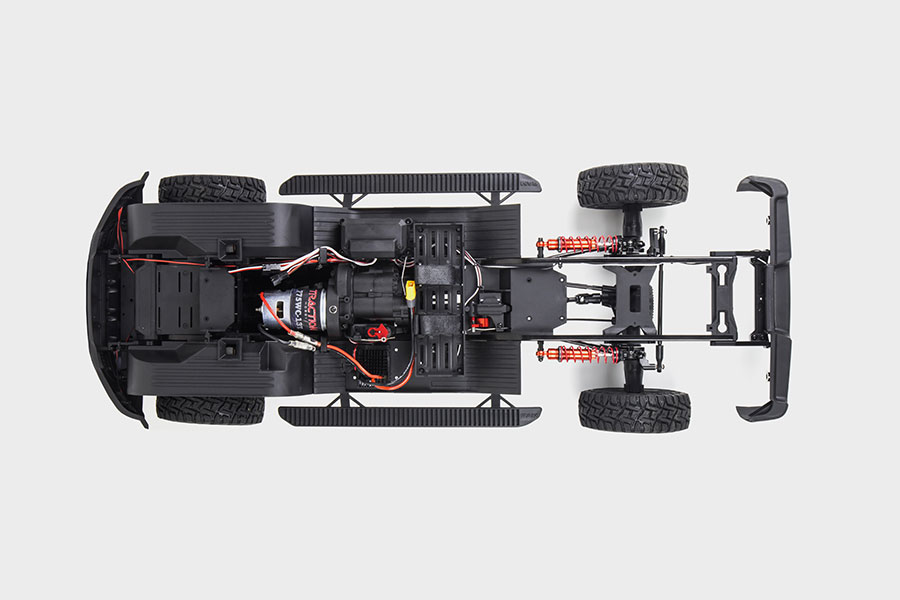

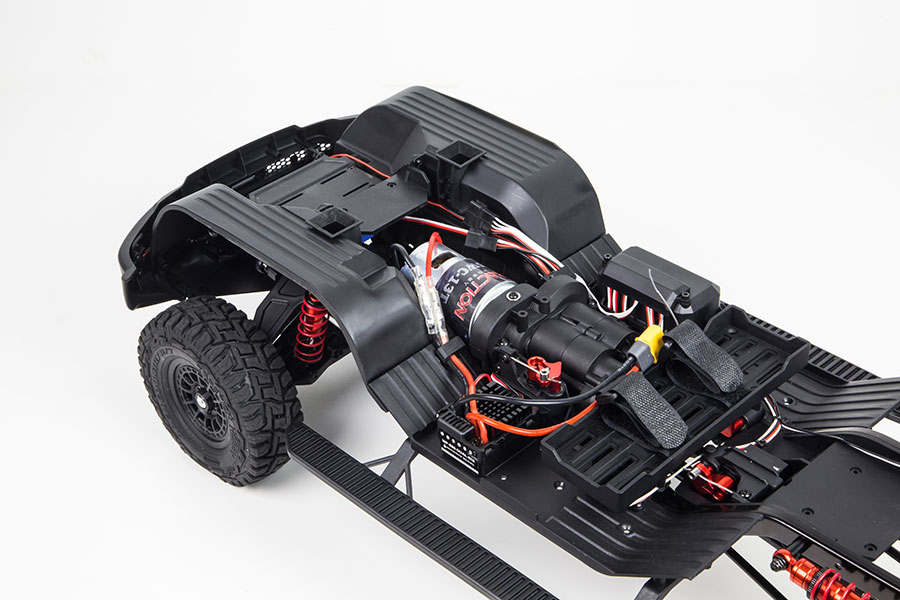

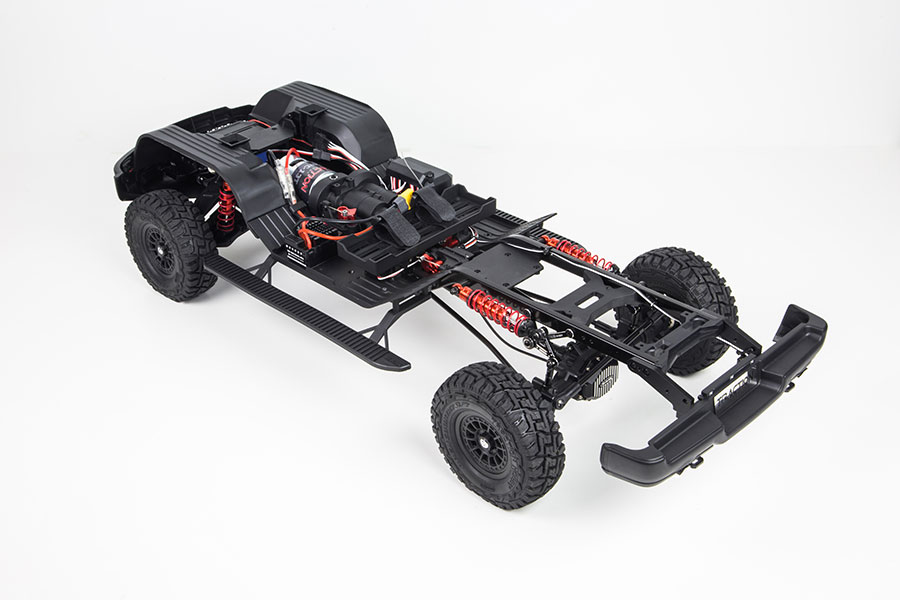

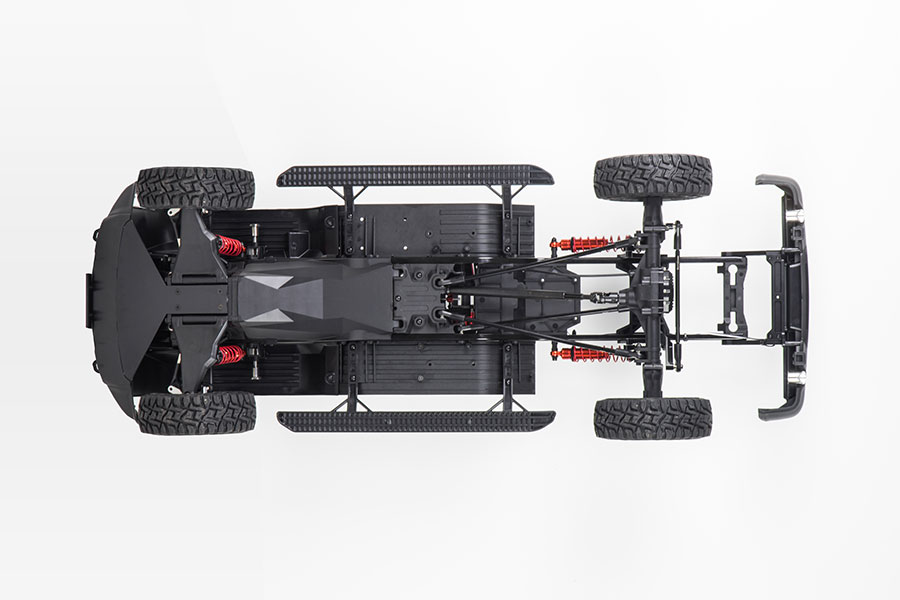

Brushed Version

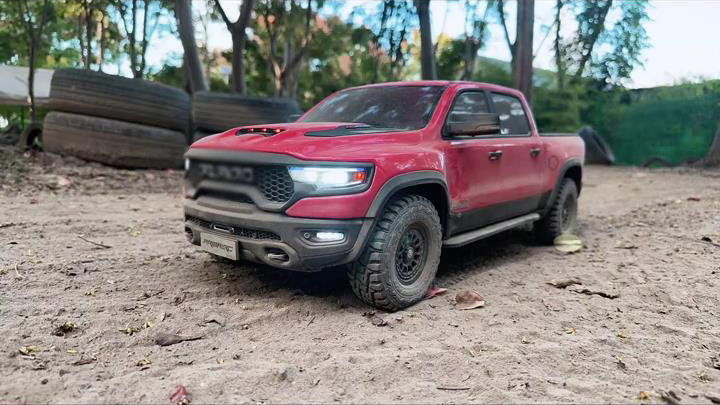

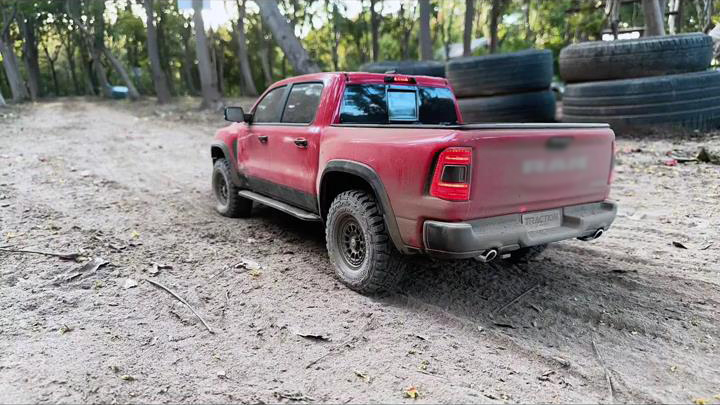

Traction Hobby Ram 1500 RC Car Image
